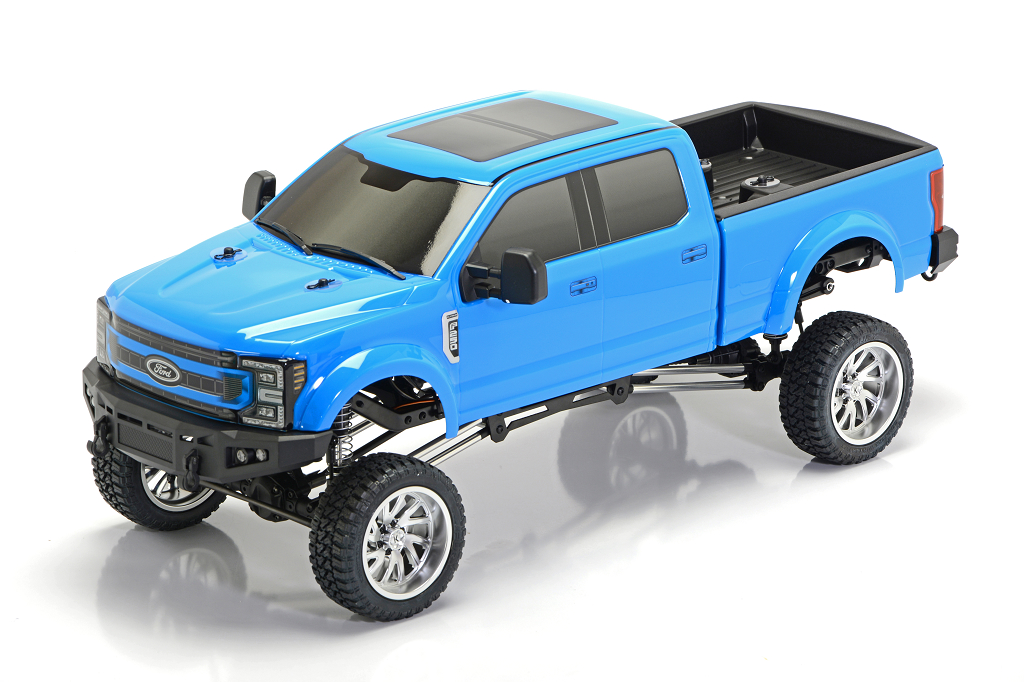

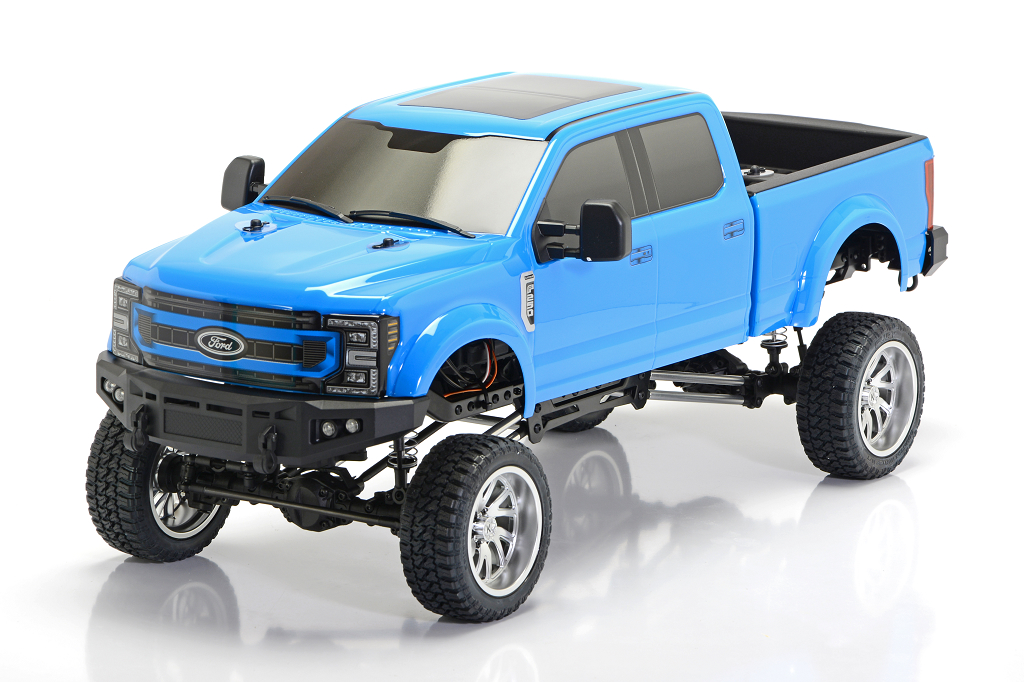

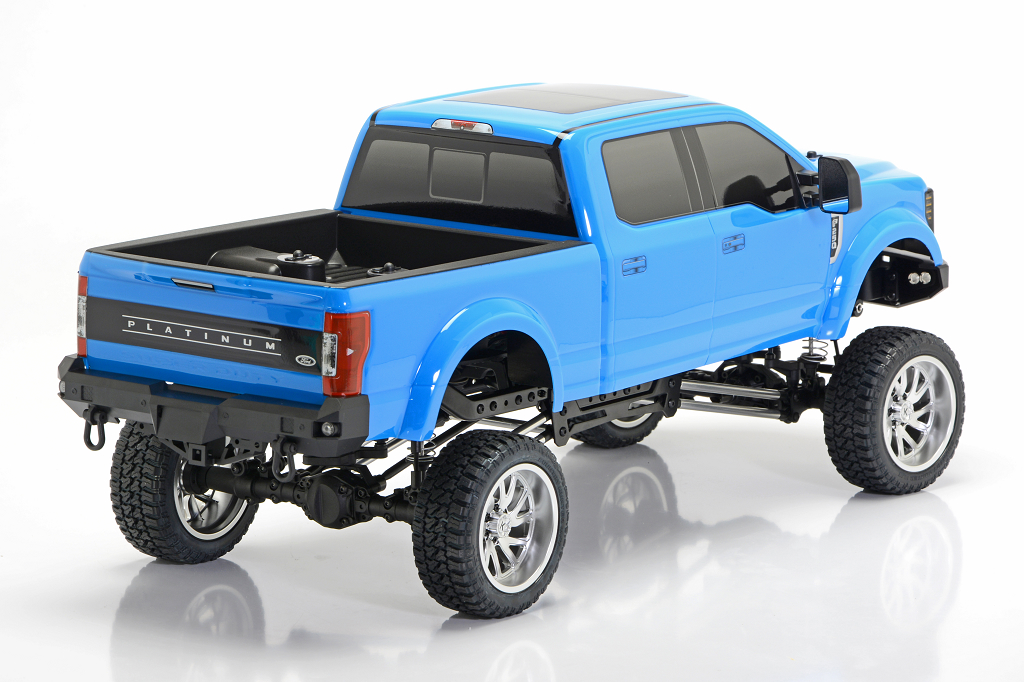

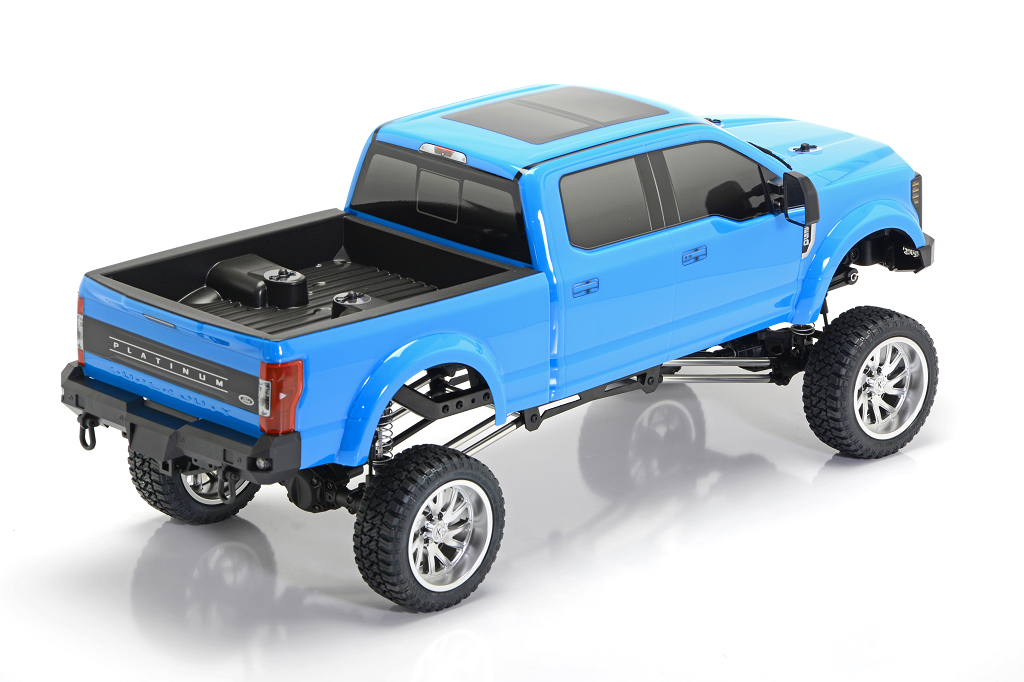

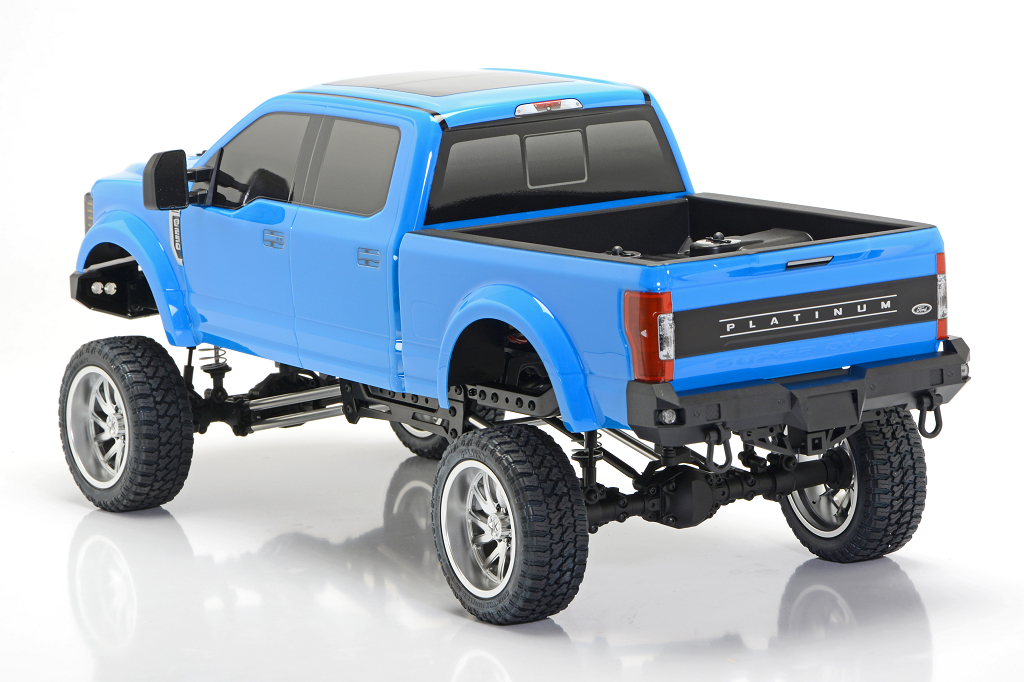

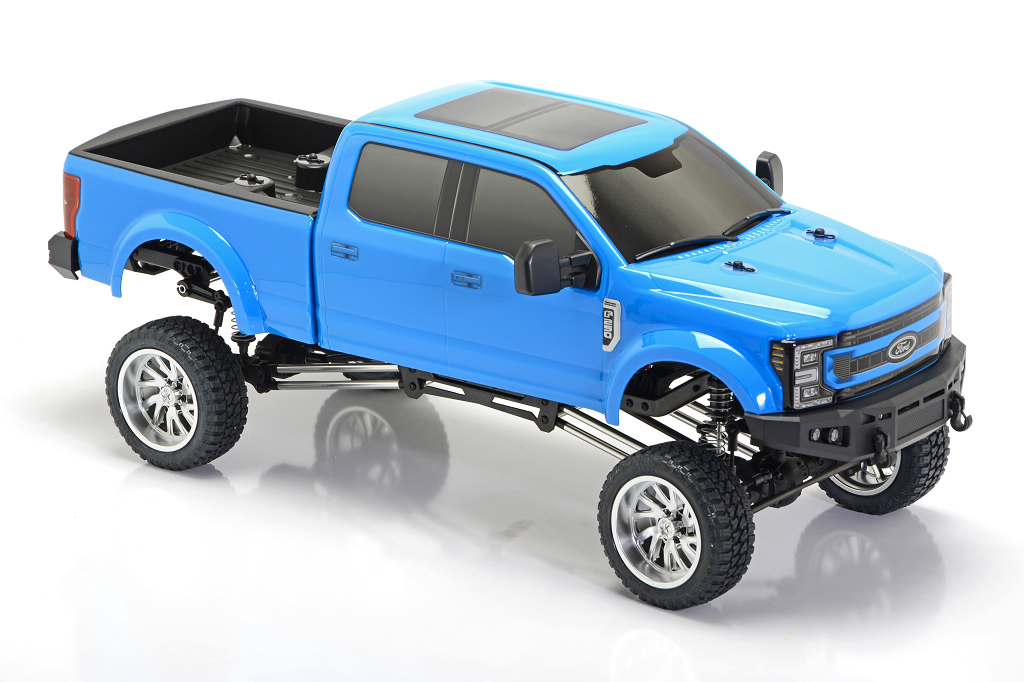

8992 Ford F-250 SD KG1 Edition Lifted Truck Daytona Blue – RTR

Ford F-250 Super Duty Custom Truck Specs

Features:

RGB LED Light:

– Stander Under Fender Multicolor RGB LED.

* ESC – 40A WP-1040-Brushed (By HobbyWing).

– Water-Proof and Dust-Proof for All Weather.

– Built-In Capacitor Module.

– Automatic Throttle Range Calibration.

– Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.

– Over-Heat Protection and Throttle Signal Loss Protection.

* Motor

– RS-540 High Torque Brushed Motor.

* Servo

– 12Kg Metal Gear Servo (By Savox).

4.8V – 0.26 sec/60° 10.0 kg-cm.

6.0V – 0.23 sec/60° 12.0 kg-cm.

25T Horn Gear Spline.

* Radio System

– Pistol-Grip Mod-3S 3 Channel Transmitter.

– Digital Trimming.

– Steering Dual-Rate (ST D/R) Adjustment.

– End Point Adjustment (EPA).

– Build in Failsafe.

Transmitter Model: 82190

Frequencies: 2.4GHz

Weight: 375gm

Power Supply: 4 – AA Alkaline (Not Included).

–Receiver

Receiver Model: G82191

Frequency: 2.4GHz

Power Supply: DC 4.8 ~ 6.0V

Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).

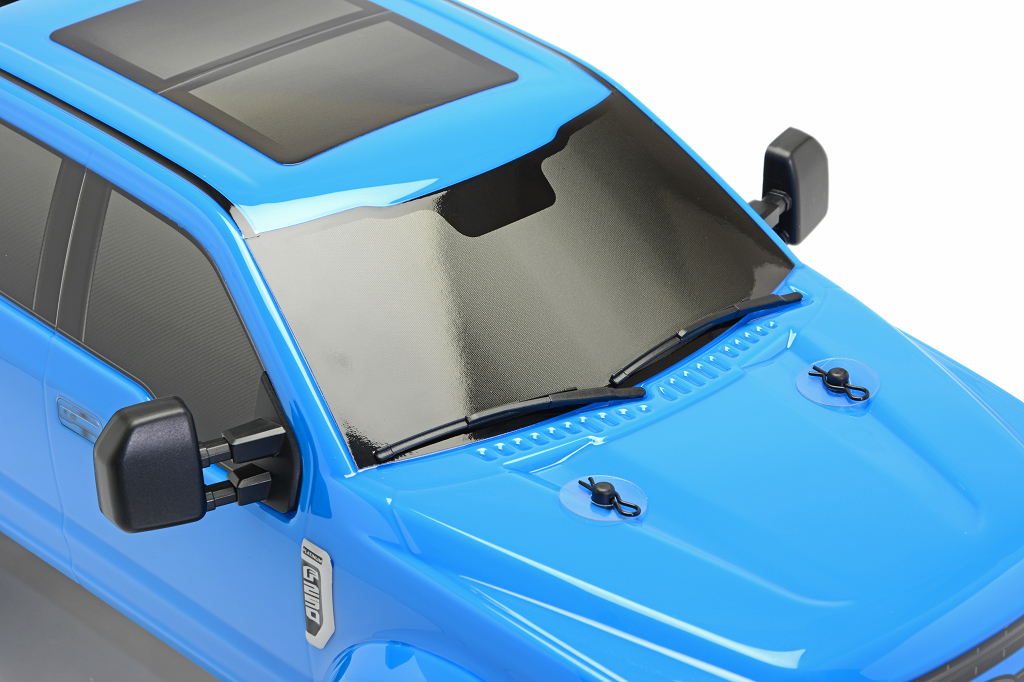

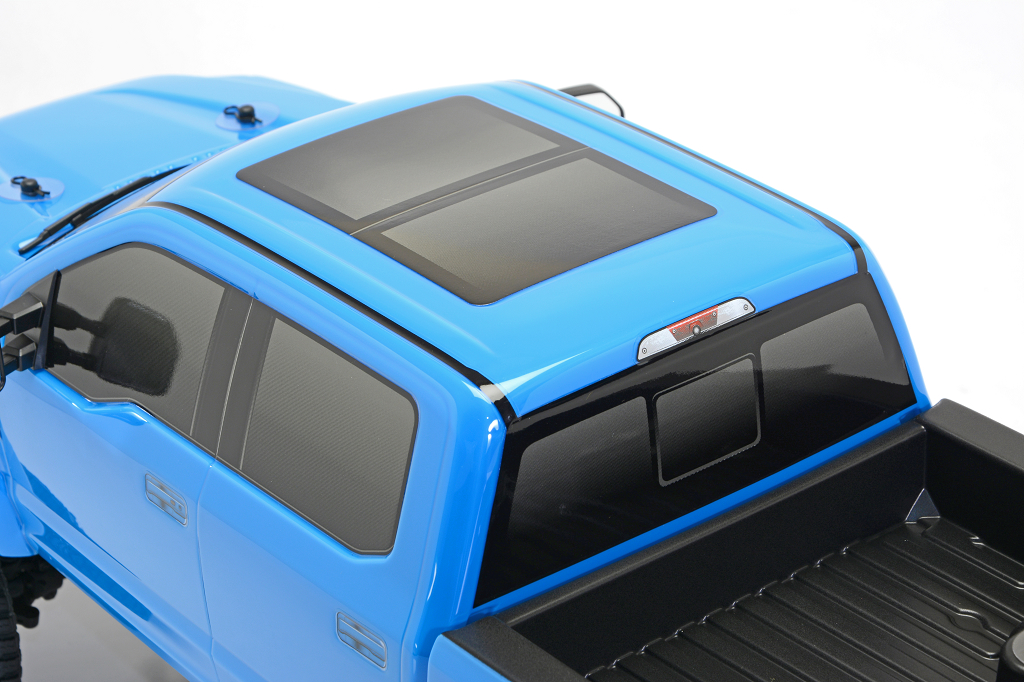

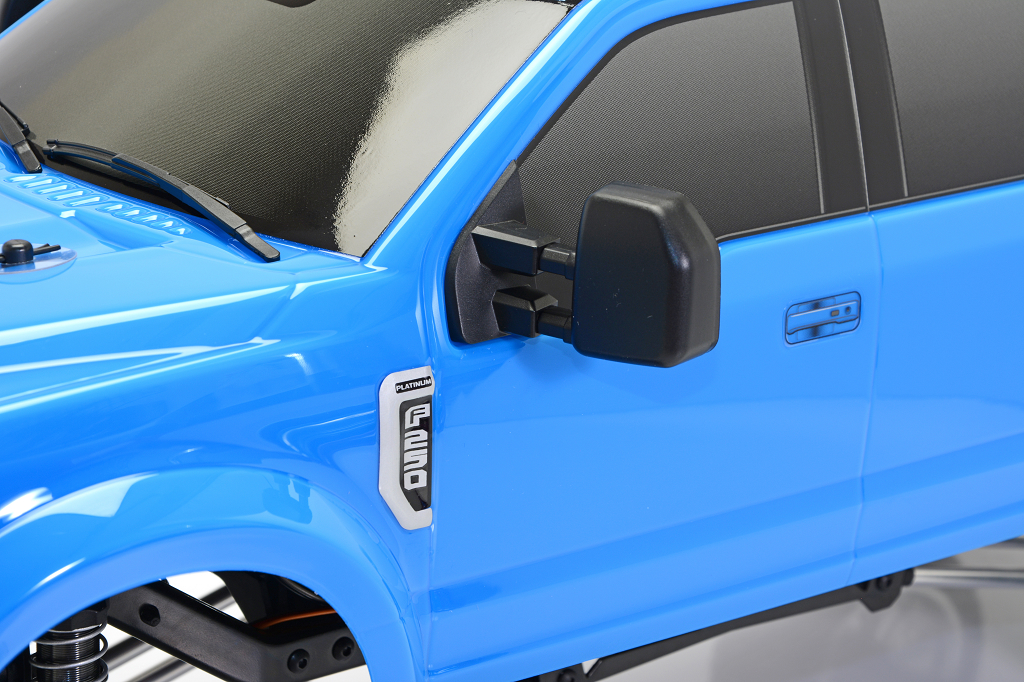

Body:

Official Licensed by Ford Motor

– F-250 Super Duty.

– Scale Realistic Body Details.

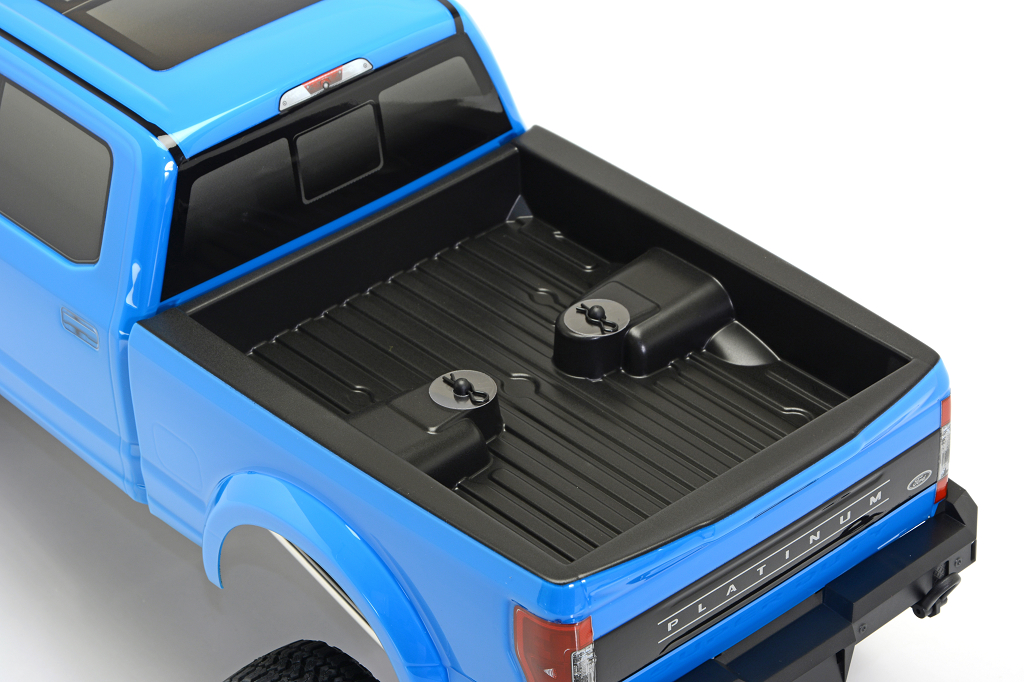

– Black Bed Liner Coating.

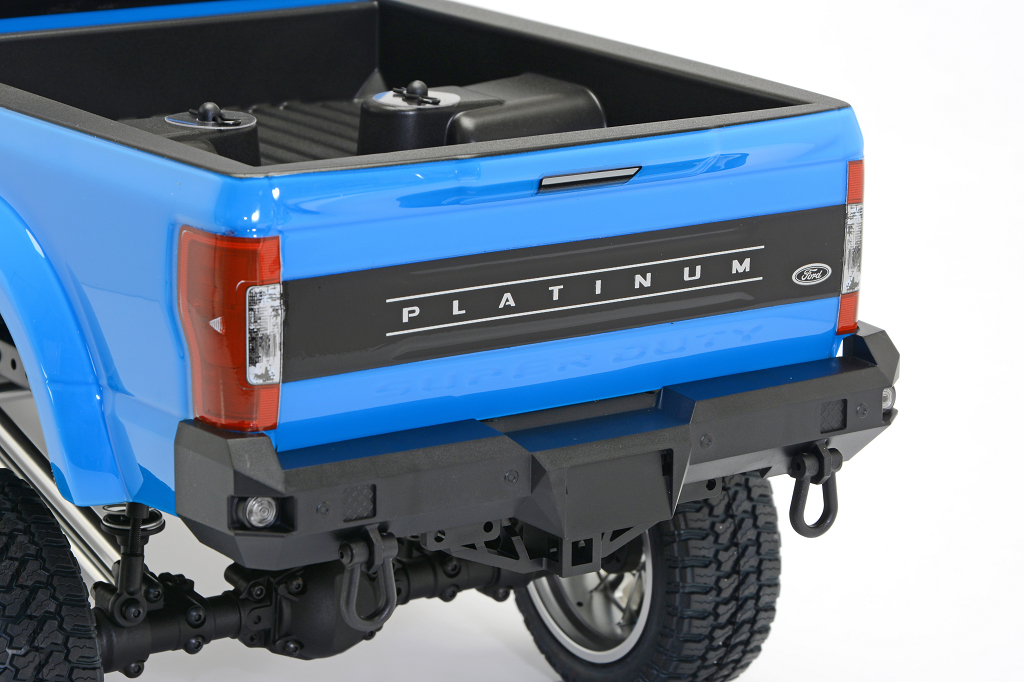

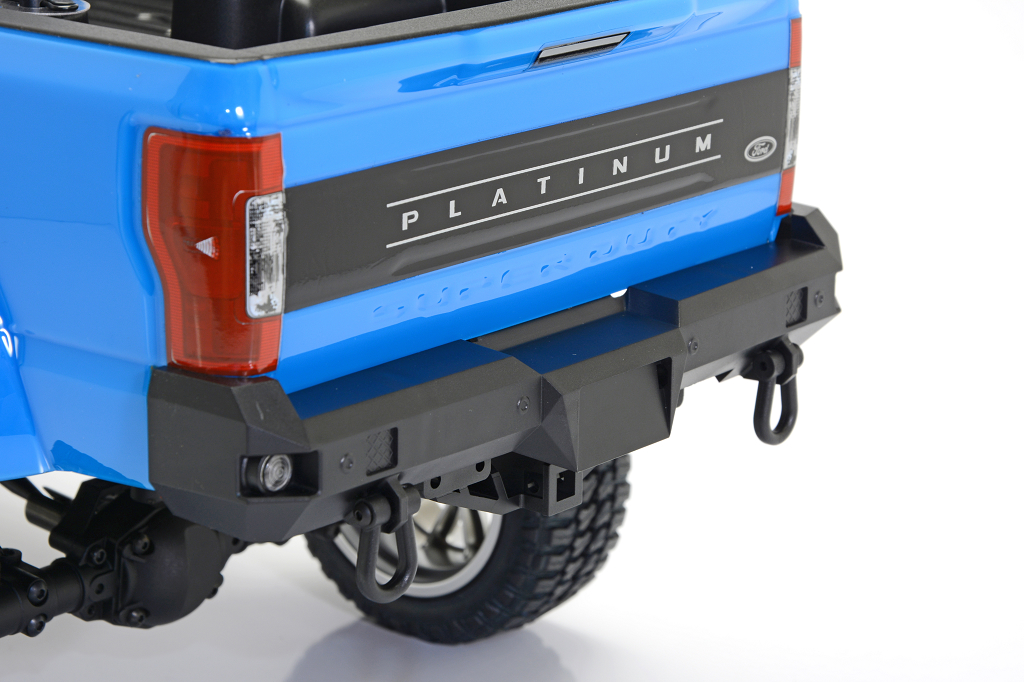

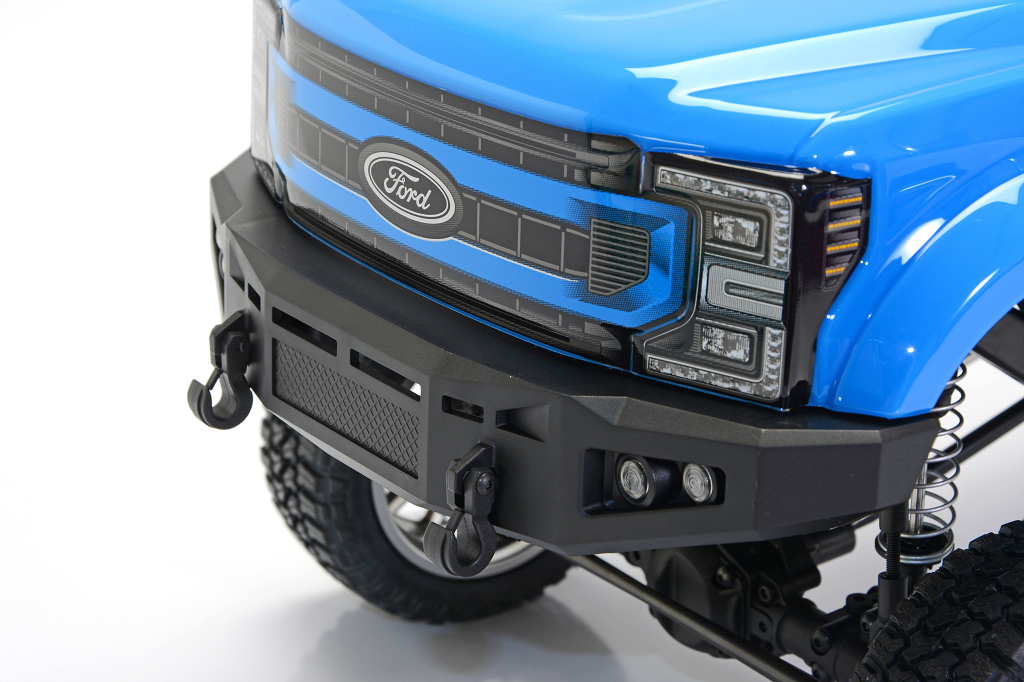

– hard Molded Front & Rear bumpers with build in 3mm LED housing



Chassis:

– Steel Frame Rails.

– CMS (Chassis Mounted Servo) Chassis Design.

– Stamped Steel Shock Hoops.

– Steel Skid Plate.

– Full Precision Ball Bearing Supported.

– Adjustable Turnbuckles.

– High Torque Servo Saver Horn.

– Easy Access Battery Tray.

– Battery Tray Size 146 x 50 x 25mm.

Suspension:

– Custom Lifted Suspension Design.

– 110mm Big Bore Oil Filled Adjustable Coil Over Shocks.

– 12mm over size shock body with 3mm Hardened Steel Polished Shaft.

– Harden Steel Steering Drag Link.

– CNC Machined 6mm Aluminum Linkage.

– Front / Rear Sway Bar.

Drivetrain:

– Full Metal Transmission Gears.

– 4 Wheels Drive.

– Center Shaft Drivetrain for More Power Transferred to the Wheels.

– Hight Efficient Transmission System.

– Wide Range Easy Changeable Gear Box Design.

– Sealed Transmission Case.

– Sealed Axle Housing.

– Metal Planetary Gear Type Differential.

Gear Ratio:

– Hi / Speed Ratio 1.56:1

– Hi / Torque Ratio 2.8:1

– Spur / Pinion Gear 32p85/32p12T

– Ring & Pinion Gear30/15T 2:1

Wheel:

Official Licensed by KG1 Forged

-KF004 Vile Wheel.

-66.50mm x 37.5mm.

Tires:

Official Licensed Fury Tires

-Low Profile Country Hunter tires.

-65 x 100.50 x 38.50 mm.

Specs:

Item Number: 8992 / 8993

F-250 Super Duty

1/10 Scale 4 wheels Drive Lifted Custom Truck

Length:          25.6 inches (650mm).

Width:            10.04 inches (255mm).

Wheelbase: 16.02 inches (407mm).

Ground Clearance: 3.54inch (90mm).

Weight:         5.51 lb. 2.5 kg.

Battery Recommend : 2S 5000mah Lipo Battery with dean connector
