| Celebrating 15 Years of the F103 This limited edition model celebrates the 15th anniversary of the first release of the F103 chassis which is greatly popular for its lightweight, simple chassis components with sharp driving response. The carbon 3.2mm lower and 1.5mm upper deck further improve chassis rigidity and feature special pad printed logos. The front features carbon reinforced suspension arms and aluminum turnbuckle shafts, with the rear featuring an aluminum T-bar bridge, low-friction pads, and a carbon friction plate. In addition to these exclusive parts, the chassis also includes full ball bearings, a carbon rear shaft, aluminum differential housing, 04 module spur and pinion gear, all loaded to improve power transmission efficiency and optimise the F103’s performance. |

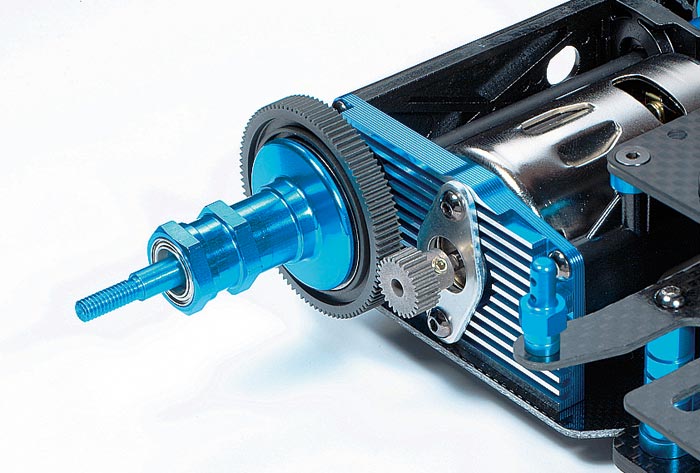

 Blue anodized height adjustable aluminum motor mount and aluminum differential housing provide beautiful visual highlights. |
 |

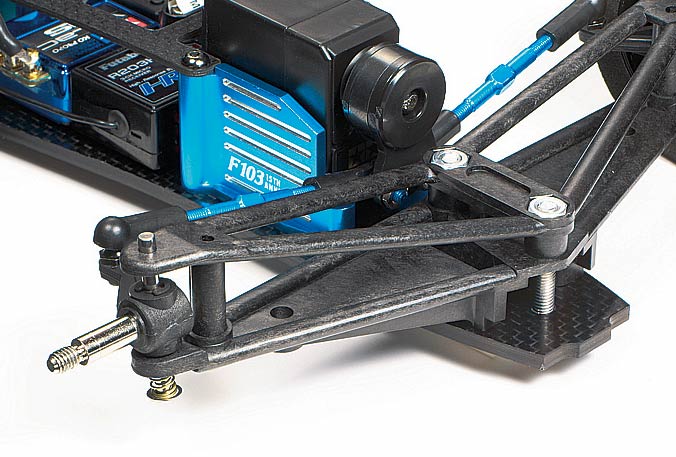

 Front arms and uprights are made from carbon reinforced resin to improve strength. |
|

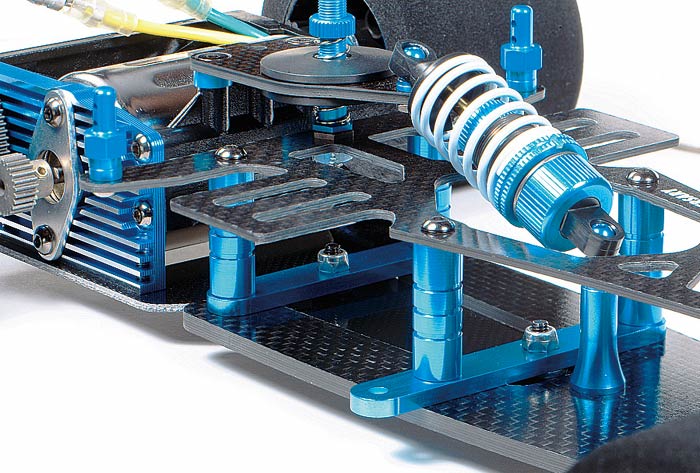

 Aluminum T-bar bridge ensures a rigid rear suspension. Battery posts are also made of aluminum. |
 Rear susupension features low-friction pads, carbon fiber friction plate, and a TRF damper. |
|

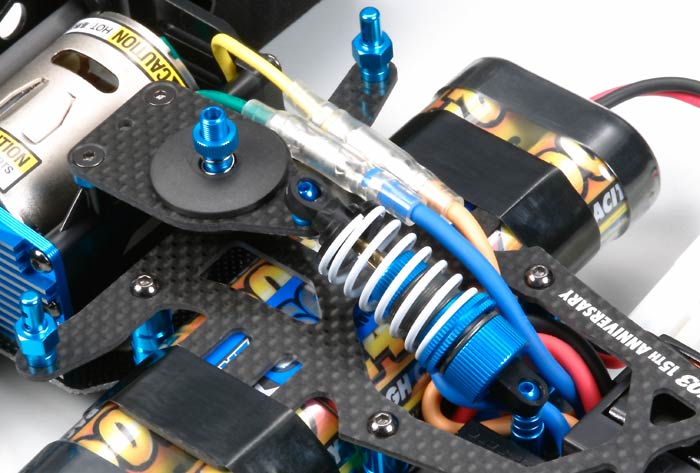

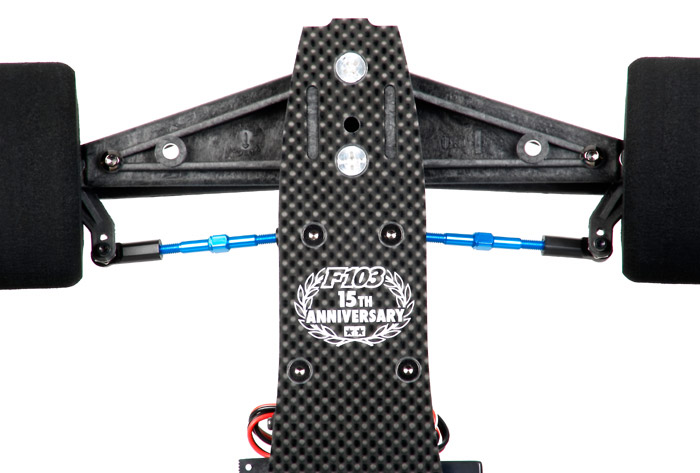

 Enhancing premium allure, the new carbon fiber lower and upper deck feature special pad printed logos. |
|

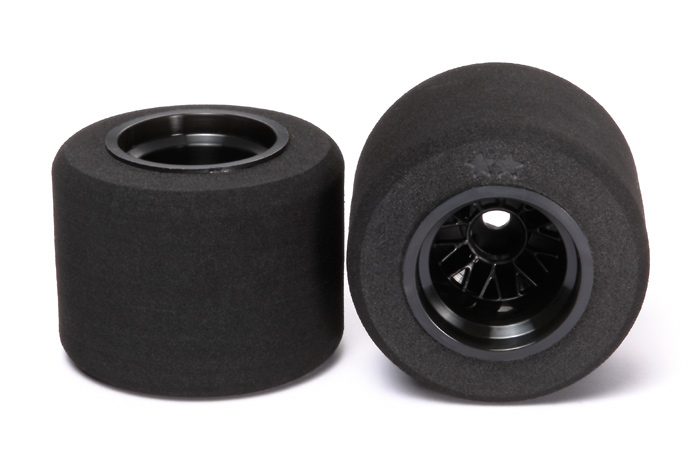

 Front and rear sponge tires feature printed twin star logos and are pre-attached to wheels. |
| Specifications ●Length: 328mm（wingless） ●Width: 200mm ●Tread: Front=170mm, Rear=160mm ●Type 540 Motor ●Drivetrain＝Rear Direct Drive 2WD ●Ball Differential ●Isometric Steering Tie-Rods ●Suspension: Front=Independent kingpins with coil springs, Rear=T-Bar Rigid ●Gear Ratio=3.72 :1 ●Tire Width/Dia.: Front=30/57mm, Rear=45/58mm ●Electronic Speed Controller (sold separately) |
| Main Parts ●Hard Carbon Lower Deck（3.2mm thick） ●Long Carbon Upper Deck ●Aluminum Servo Mounts ●Carbon Reinforced Front Suspension Arms ●Aluminum T-Bar Bridge ●Low-Friction Pads ●Carbon Friction Plate ●Pre-Attached Sponge Tires ●Height Adjustable Aluminum Motor Mount ●Aluminum Differential Housing ●TRF Damper ●Carbon Rear Shaft ●4mm Aluminum Lock Nuts ●Aluminum Turnbuckle Shafts ●04 Module Spur Gear ●Hi-Torque Servo Saver |
