Tamiya 1/10 RC M05 PRO Chassis Kit – M05 [58443]

The M05 PRO Kit M05 produced by Tamiya in 1/10 scale M-Chassis Car series FWD drivetrain assembly kit, is classified in R/C Models – On-Road – M-Chassis Cars

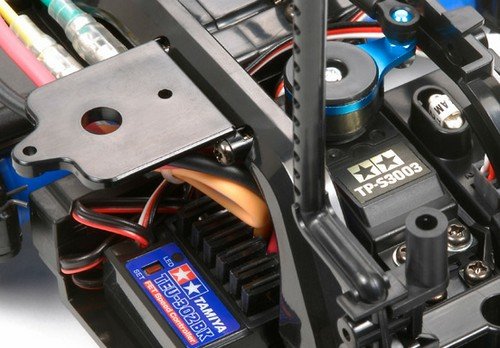

• Tamiya is proud to introduce the release of a new chassis to the very popular M Chassis range, the M-05 PRO chassis kit. The new chassis layout features new servo, receiver,and ESC positions for improved weight distribution and a lower center of gravity. Further-more, a 3-piece tie-rod steering linkage offers sharp cornering performance. This machine handles extremely well on straights and proves its worth with its excellent high-speed cornering ability. Body shells and numerous Option Parts for M-03 chassis machines canbe loaded onto this machine easily.

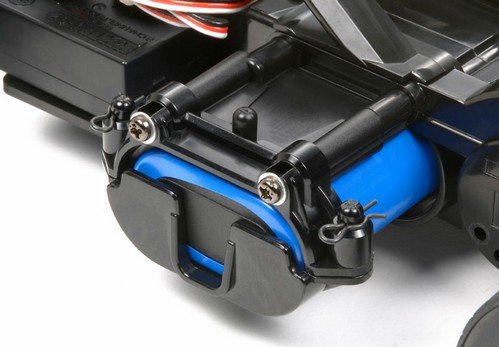

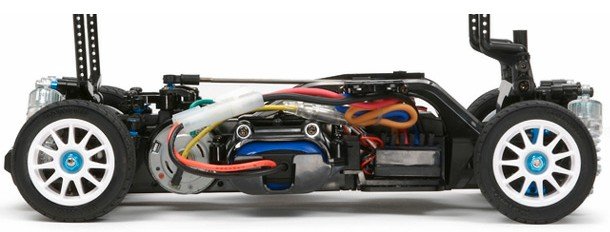

• Battery pack, motor, and R/C unit are positioned lower than the tire height for optimum weight distribution and a low center of gravity. Three wheelbase lengths are possible (210mm/225mm/239mm) by simply switching the position of parts from the rear suspension. The chassis is compatible with M-03 chassis bodies, providing you with a wide range of body choice. The 60D radial tires with realistic tread pattern are mounted on the 11-spoke white wheels.
• M-03R Aluminum Rear Uprights
• Aluminum Horn for Hi-Torque Servo Saver
• CVA Oil Damper Super Mini
• Short Springs for TRF Dampers (Soft/Medium/Hard)
• 1150 Ball Bearings
• 850 Ball Bearings
• Aluminum Ball Connectors (Blue)
• Aluminum Ball Connector Nuts (Blue)
• 2.0mm Setting Spacer (Blue)
• 3.0mm Setting Spacer (Blue)
• 4mm Aluminum Flange Locknuts (Blue)
• Hi-Torque Servo Saver

Specs and Features:

• Chassis Length: 299mm (when with 239mm wheelbase)
• Chassis Width: 165mm
• 3 Adjustable Wheelbase Lengths (210mm/225mm/239mm)
• Tread (Front and Rear): 138mm
• Front Wheel Drive
• 3-bevel Differential Gear
• 3-piece steering linkage
• Front and Rear Double Wishbone Suspension
• Front and Rear CVA Oil Damper Super Mini
• Gear Ratio=5.8 :1
• Tire Width/Diameter (Front and Rear): 25/59mm
