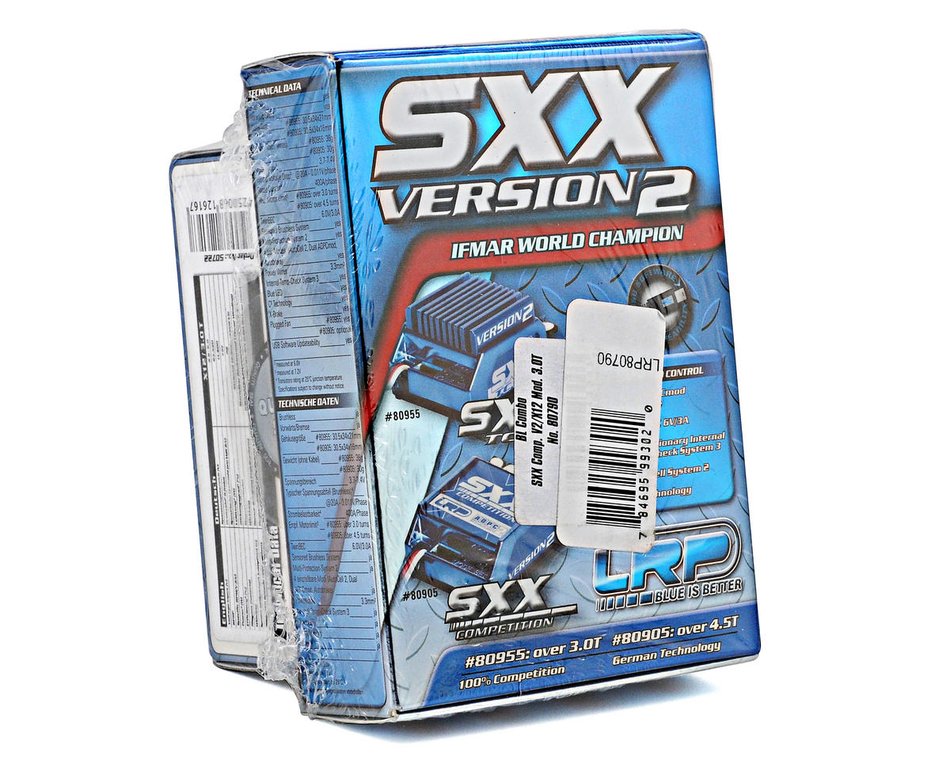

LRP SXX V2 TC Spec ESC & Vector X-12 Brushless Motor Combo (3.0T)

This is the LRP SXX TC Spec “Version 2” ESC & 3.0 Turn Vector X-12 Brushless Motor Combo. This combo represents the peak of brushless speed control and motor technology for 1/10 Onroad (Touring Car Modified) and 4WD Offroad Modified racing.

With its new ADPC mod software for precision adjustability, revolutionary TwinBEC, improved output, USB software update, and the optimized Internal Temp Check System 3, the new SXX TC Spec version 2 is ready for every challenge in 1:10 On-road, TC Modified, and 4WD Off-road Modified.

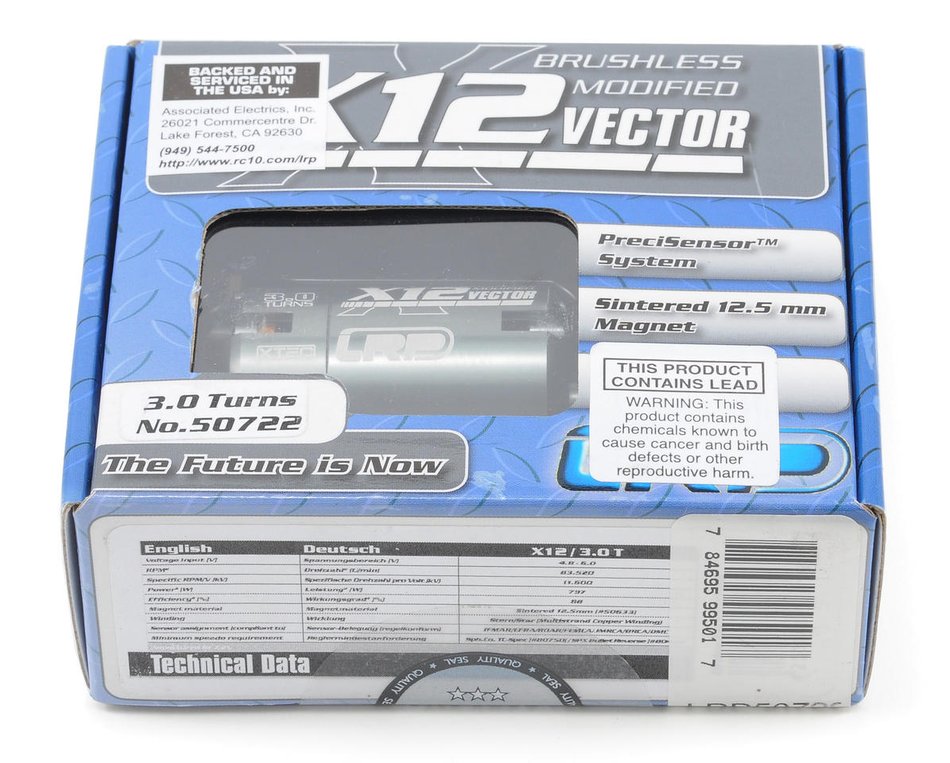

LRP’s revolutionary Vector X-12 brushless motor sets new benchmarks in electric motor performance. Fully adjustable and replaceable, the Vector X-12’s PreciSensor™ system allows precision sensor positioning for more power, torque, throttle response, and efficiency. In addition, the all-new sintered 12.5mm size magnet and new strengthened shaft further optimize the motor’s performance, efficiency, and mid-range torque.

SXX TC-Spec Features:

• Dual ADPC mod Software: Independent adjustment of “Feel” and “Boost” for maximum flexibility.
• USB Software Updateability: Benefit from all the latest performance improvements and updates available.
• TwinBEC: Constant 6V/3A output with 3.0V to 7.4V batteries. No receiver battery with 1S LiPo needed.
• Revolutionary Internal Temp Check System 3: Allows you to read out the maximum internal temperature for the speed control and motor.
• AutoCell System 2 (3.7V to 7.4V input voltage): Adjustable cut off presets for all types of cells.
• C3 Technology: Revolutionary Copper Core Cooling technology for lowest running temperature.

X-12 Features:

• Re-buildable: Machined 7075-T6 aluminum can, short/ light-weight design and maximum airflow.
• Easy-solder Design: Heavy copper, multilayer PCB for lowest resistance.
• PreciSensor System: Revolutionary precise sensor positioning for best power, throttle and efficiency.
• Timing Inserts: Adjustable timing in clearly defined with new molded timing inserts.
• 12.5 mm Sintered Magnet: All new sintered 12.5 mm magnet size and grade, for great efficiency and midrange torque.

ESC Specifications:
Motor Limit: 3.0T or higher
Voltage Input: 3.7-7.4V
Type: Forward/Brake
High Performance Fan: Included
