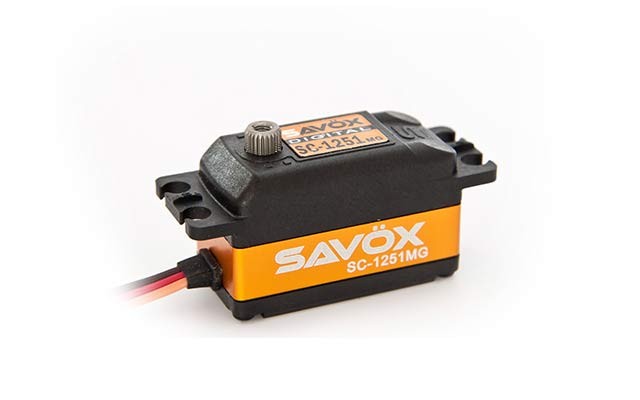

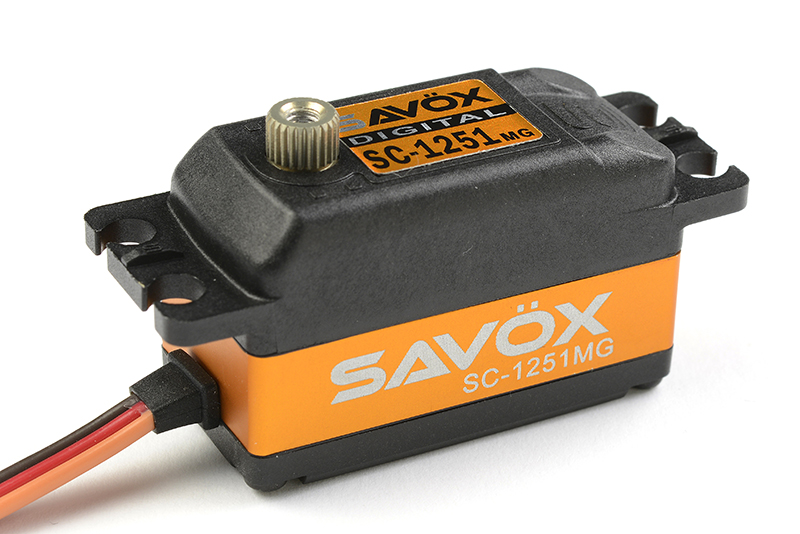

Savox – Servo – SC-1251MG – Digital – Coreless Motor – Metal Gear

SC-1251MG
Savox – SC-1251MG Digital Coreless Motor Servo, Metal Gear

Features:
– Leading edge digital servo technology
– High efficiency Coreless motor
– Accurate and fast response
– Super high resolution
– Aluminium center case for improved motor cooling and total strength
– Ball beared
– Precision Metal gears

Technical specifications:
Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V – 6.0V
Servo Type / Size: Low Profile
Motor Type: Coreless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium – Composite
Speed 60°/Sec @ 6.0V: 0.09 Sec/60°
Torque kg/cm @ 6.0V: 9.0 Kg/cm
Length (mm): 40.8 mm
Width (mm): 20.2 mm
Height (mm): 25.2 mm
Weight (g): 44.5 g
Connector type: JR
Spline size: 25T Spline
